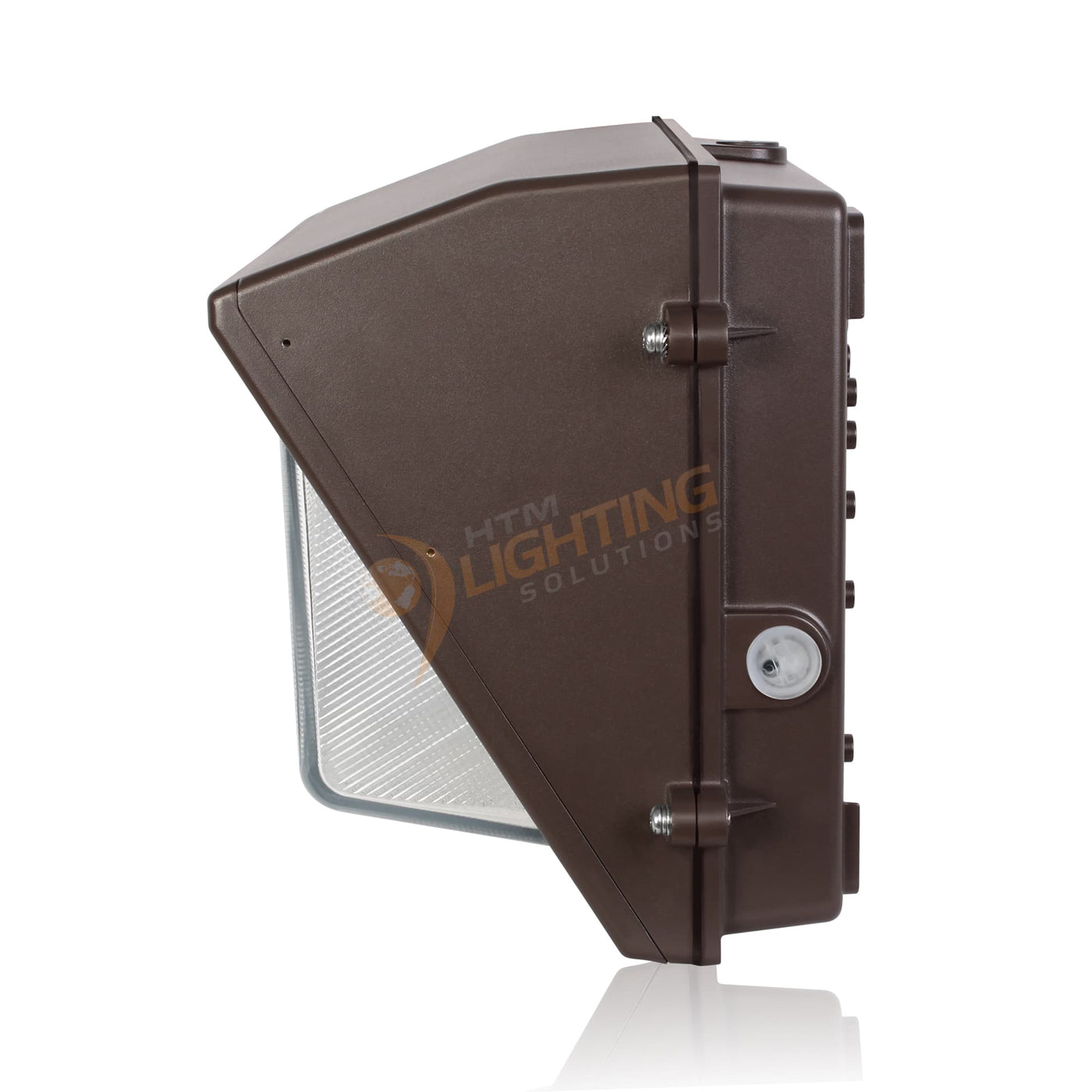

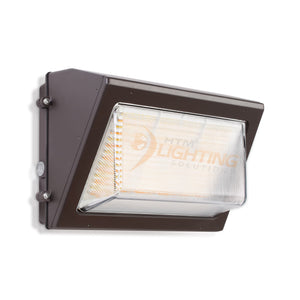

80W-120W Semi-Cutoff LED Wall Pack 3000K-5000K - 100-277VAC Photocell - Striped Glass - Bronze

80W-120W Semi-Cutoff LED Wall Pack 3000K-5000K - 100-277VAC Photocell - Striped Glass - Bronze

$97.99
SKU: HTM-SWP05M-120WBZ50-DBSGDA1
Maximum quantity available reached.
HTM Lighting Solutions Wattage Selectable & CCT Tunable LED Semi-Cutoff Wall Pack is available in 80W, 100W, and 120W all within the same fixture & a built-in Photocell! 3000K, 4000K, and 5000K CCT Tunable Switch enables the user to choose the color temperature best suitable for the application. Manufactured... View More
HTM Lighting Solutions Wattage Selectable & CCT Tunable LED Semi-Cutoff Wall Pack is available in 80W, 100W, and 120W all within the same fixture & a built-in Photocell! 3000K, 4000K, and 5000K CCT Tunable Switch enables the user to choose the color temperature best suitable for the application. Manufactured... View More
$97.99
Maximum quantity available reached.

Suggested Accessories

120V Outdoor Swivel Mount Light Control Photocell
 $15.95
10kA Slim Shape Hatch LED Surge Protector - 120/277VAC
 $24.95
10kV/10kA LED Surge Protector - Hatch Snap Lock Mounting
 $27.95
Continue Shopping

Description

HTM Lighting Solutions Wattage Selectable & CCT Tunable LED Semi-Cutoff Wall Pack is available in 80W, 100W, and 120W all within the same fixture & a built-in Photocell!

3000K, 4000K, and 5000K CCT Tunable Switch enables the user to choose the color temperature best suitable for the application.

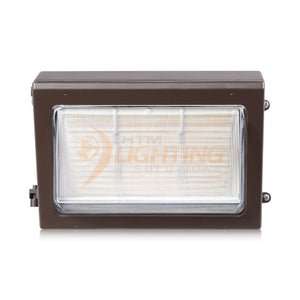

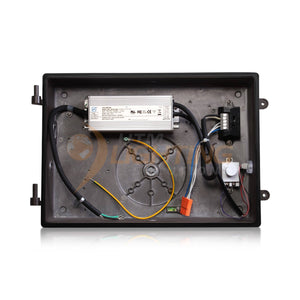

Manufactured using Die-Cast Aluminum, this durable LED Wall Pack also comes with Striped Glass with 110 Degree Beam Angle to ensure reliability, and constant even light output throughout its longevity.

Features:

  • 100-277VAC Rated w/ 6kV Built-in Surge Protector
  • IP65 Rated for Wet Location
  • Striped Glass Lens (No Yellowing)

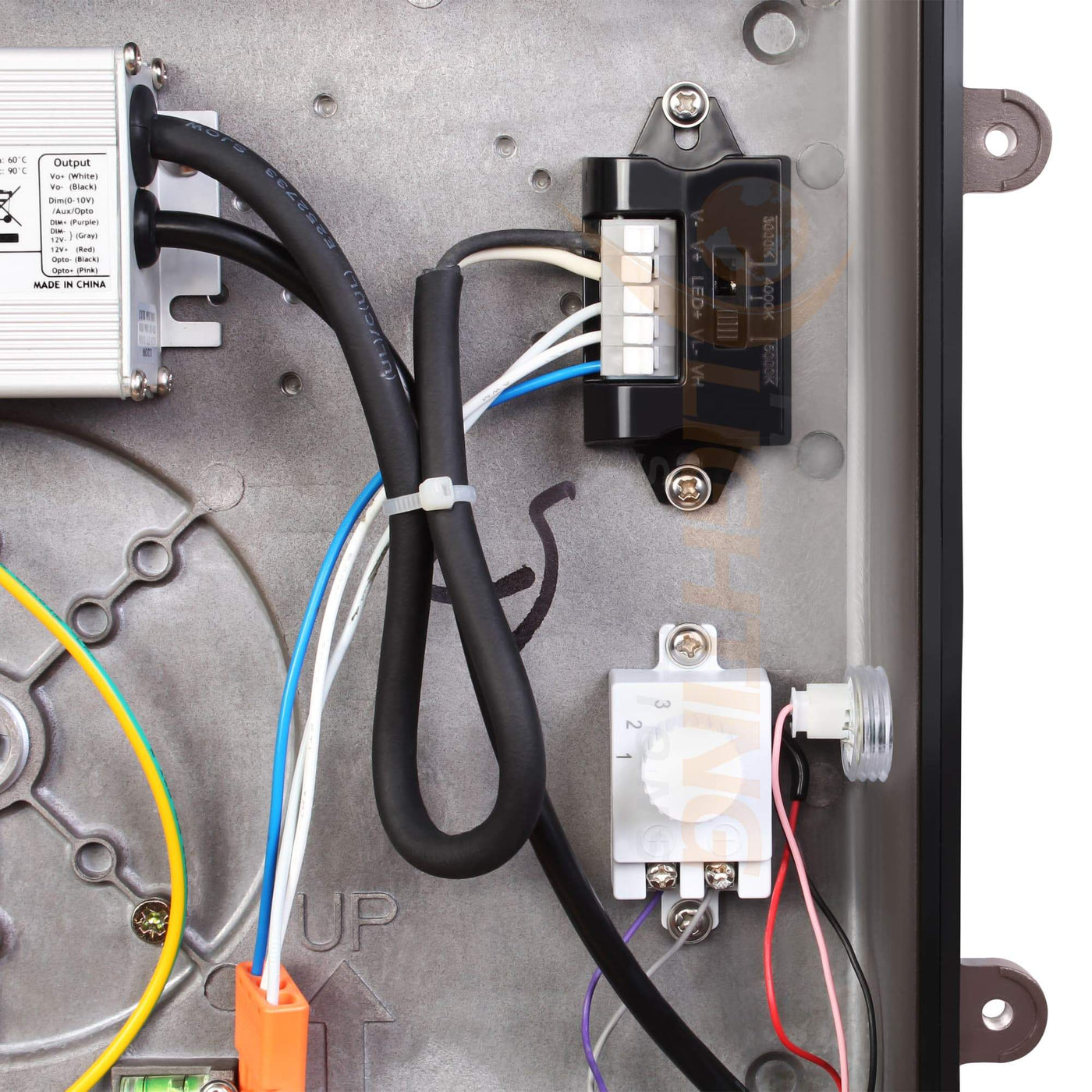

  • Power Selectable available in 80W, 100W, or 120W
  • CCT Tunable in 3000K (Warm White), 4000K (Natural White), 5000K (Cool White)

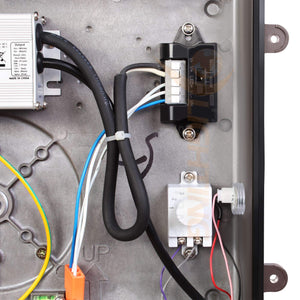

  • Photocell Integrated (Can be disconnected)
  • 1/2" Knockouts for field-installed accessories such as a motion sensor
  • UL Listed & DLC Premium# P18PHVWH for Federal & State Rebates
  • 5-Year Limited Warranty

Ratings:

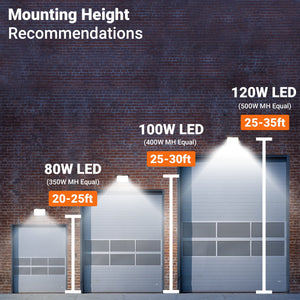

  • 80W LED = 11,600lm (350W MH Equal) – 20-25ft Mounting Height
  • 100W LED = 14,500lm (400W MH Equal) – 25-30ft Mounting Height
  • 120W LED = 17,400lm (500W MH Equal) – 25-35ft Mounting Height
Type LED Wall Pack
Item Dimensions 14.37in. x 7.55in. x 9.33in.
Wattage 120W / 100W / 80W
Equivalent 500W MH / 400W MH / 350W MH
CCT 3000K / 4000K / 5000K
Lumens 10,800 - 17,400 Lm
CRI >80
Input Voltage 100-277VAC
Finish Bronze
Material Heavy-Duty Cast Aluminum
Rated Lifetime 50,000+ Hours
Beam Angle 110 Degrees
Lens Type Tempered Stripe Glass
Mounting Type Wall-Mount
IP Rating IP65 for Wet Locations
Warranty 5-Year Limited
Certification(s)
  • cUL Listed
  • DLC Qualified

Downloads

  • pdf iconDownload Datasheet
  • instructions iconDownload Instructions
  • rebate iconDatabase of State Incentives
  • YouTube ButtonWatch Product Video
    ×
    YouTube ButtonWatch Product Video
Box Qty 1
Box Dimensions (in.) 16in. x 12in. 10in.
Box Weight (lbs) 10.25 Lbs
Carton Qty 4
Carton Dimensions (in.) 23in. x 22in. x 17in.
Cartin Weight (lbs) 43.45 lbs

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
L
Larry S.
Just what I wanted

Fast delivery and easy install.

S
Serge
Very well made fixtures

Very well made fixtures

M
Michael L.
Good purchase: YES!

Bright and dimmable: YES
Wide angle: YES
Accurate 3 Kelvin color choices: YES
Accurate dusk to dawn sensor: YES
Cheap appearance: No.
Good purchase: YES!
