Description

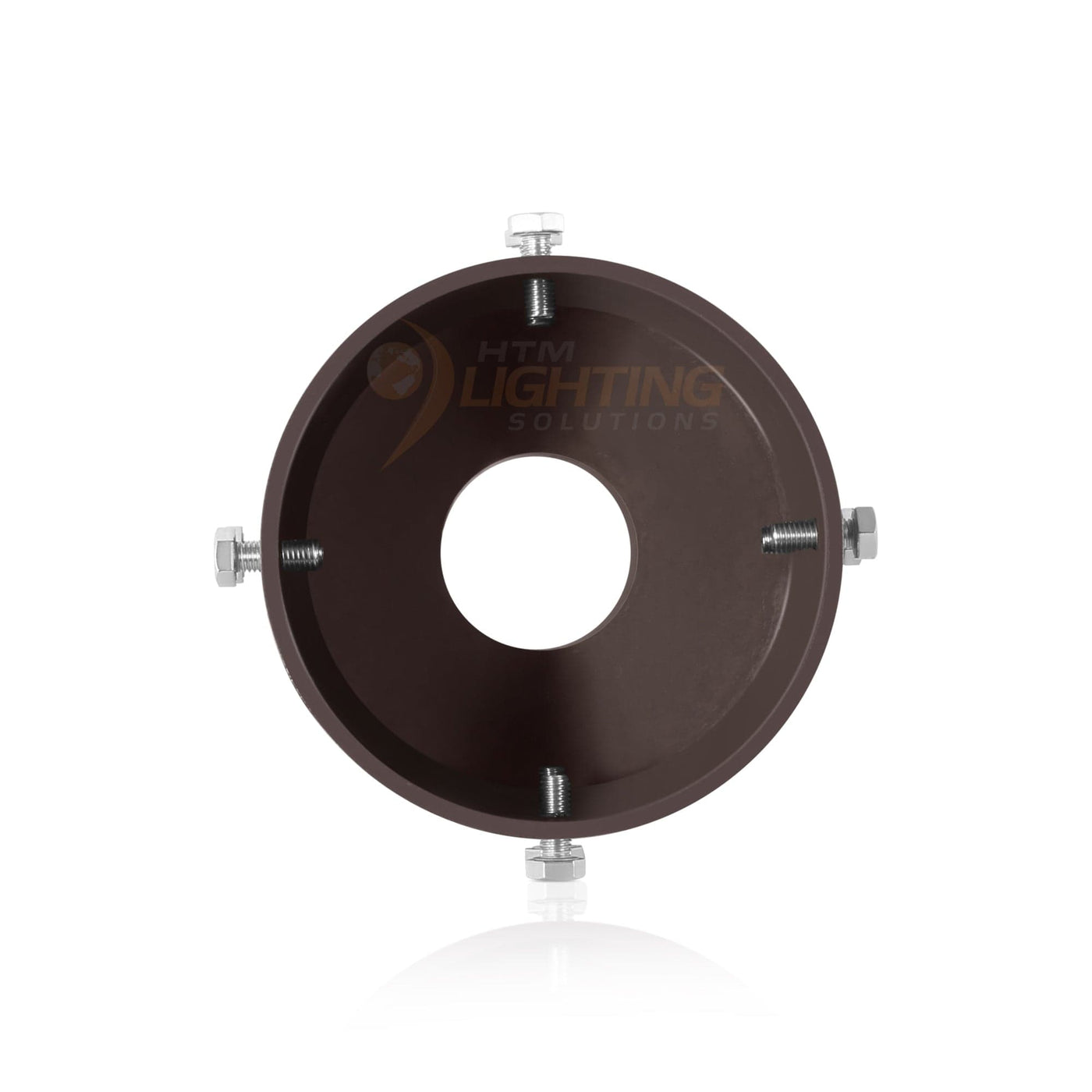

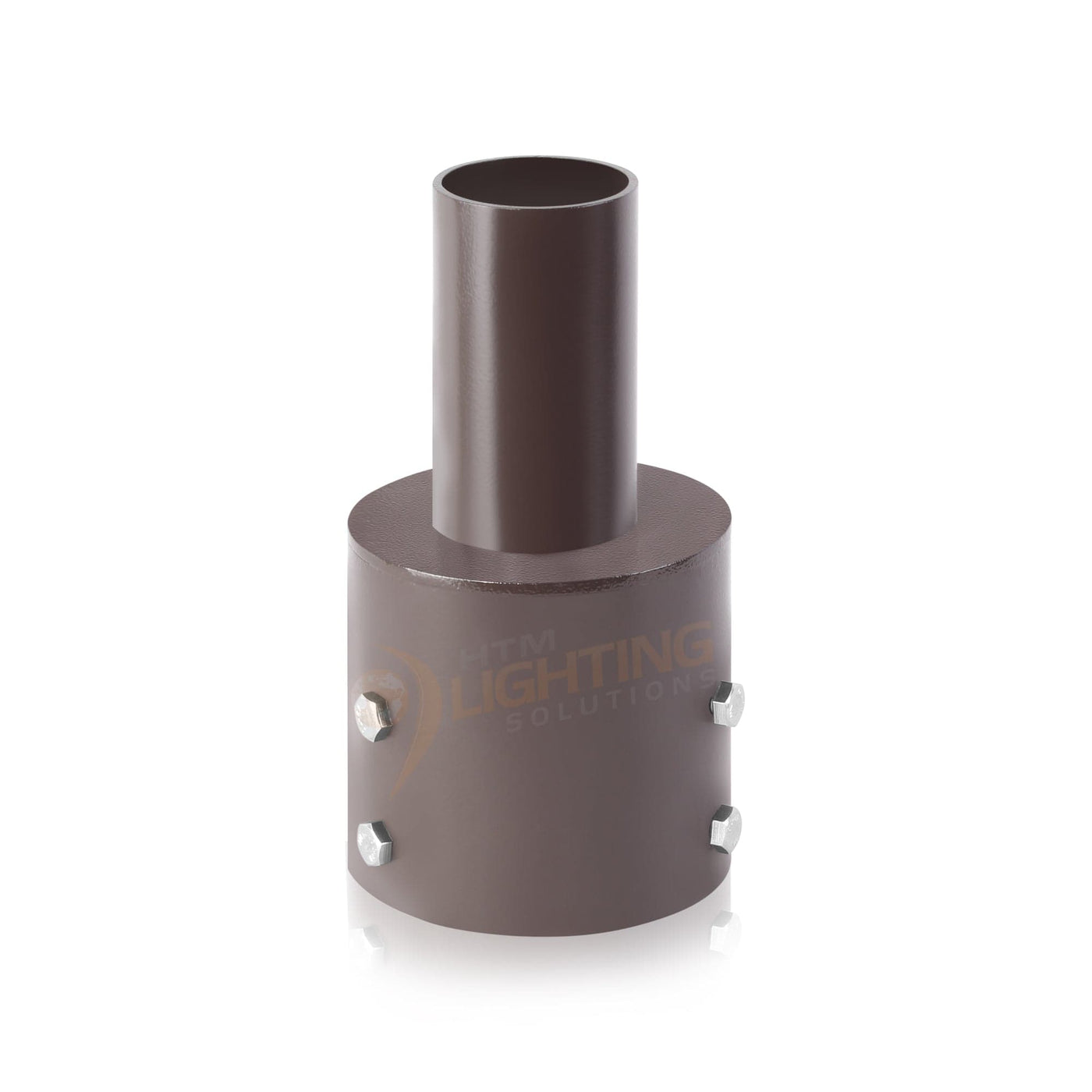

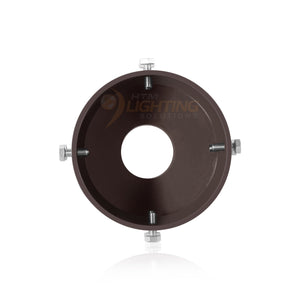

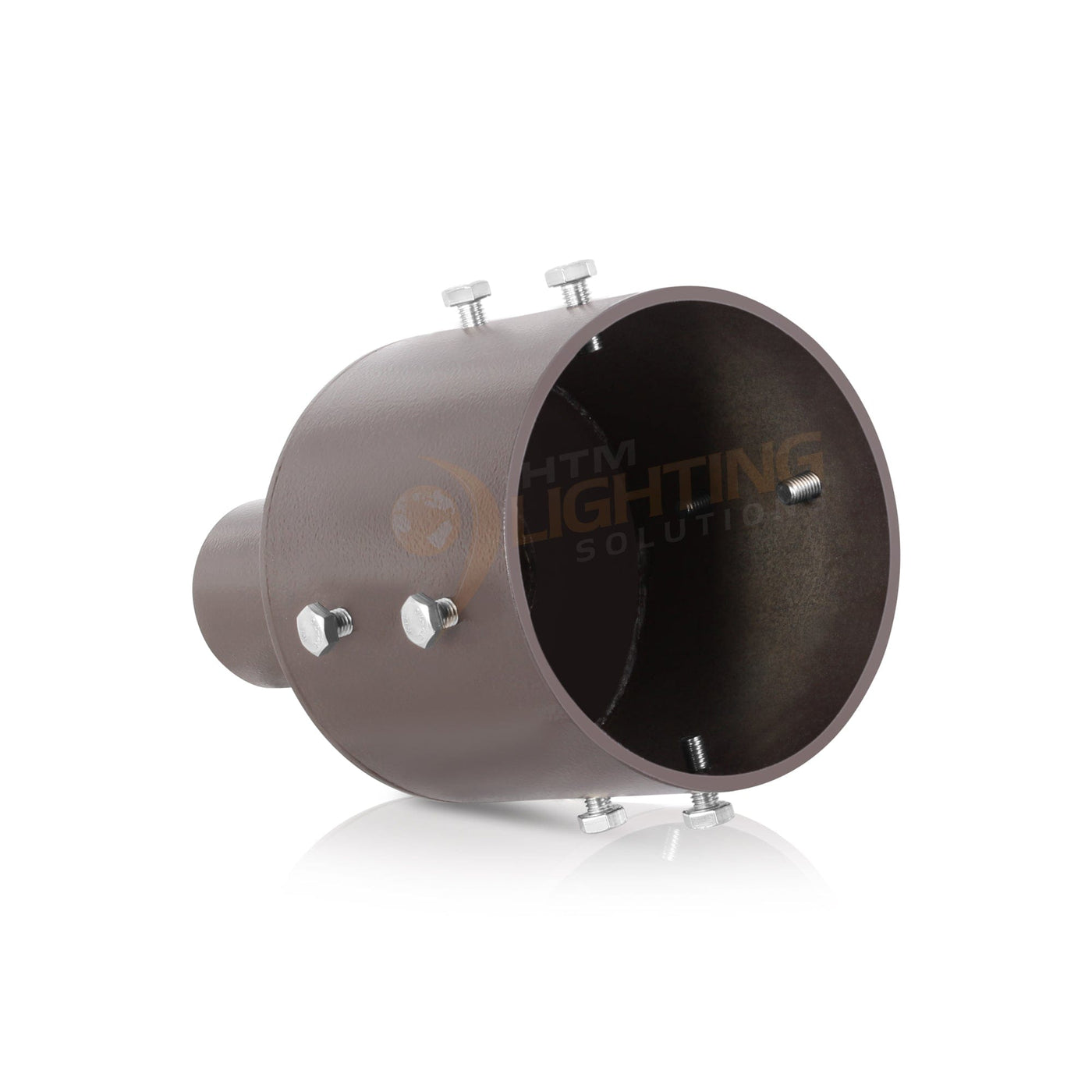

This Heavy Duty Steel Round Pole Mounting Bracket is made to fit over any 4in Round Concrete, Fiberglass, Aluminum or Steel Poles. Hardware Kit is included for a quick and easy installation!
Includes a 2-3/8in Vertical Tenon for mounting any compatible Adjustable Split-Fit LED Parking Lot Fixtures.

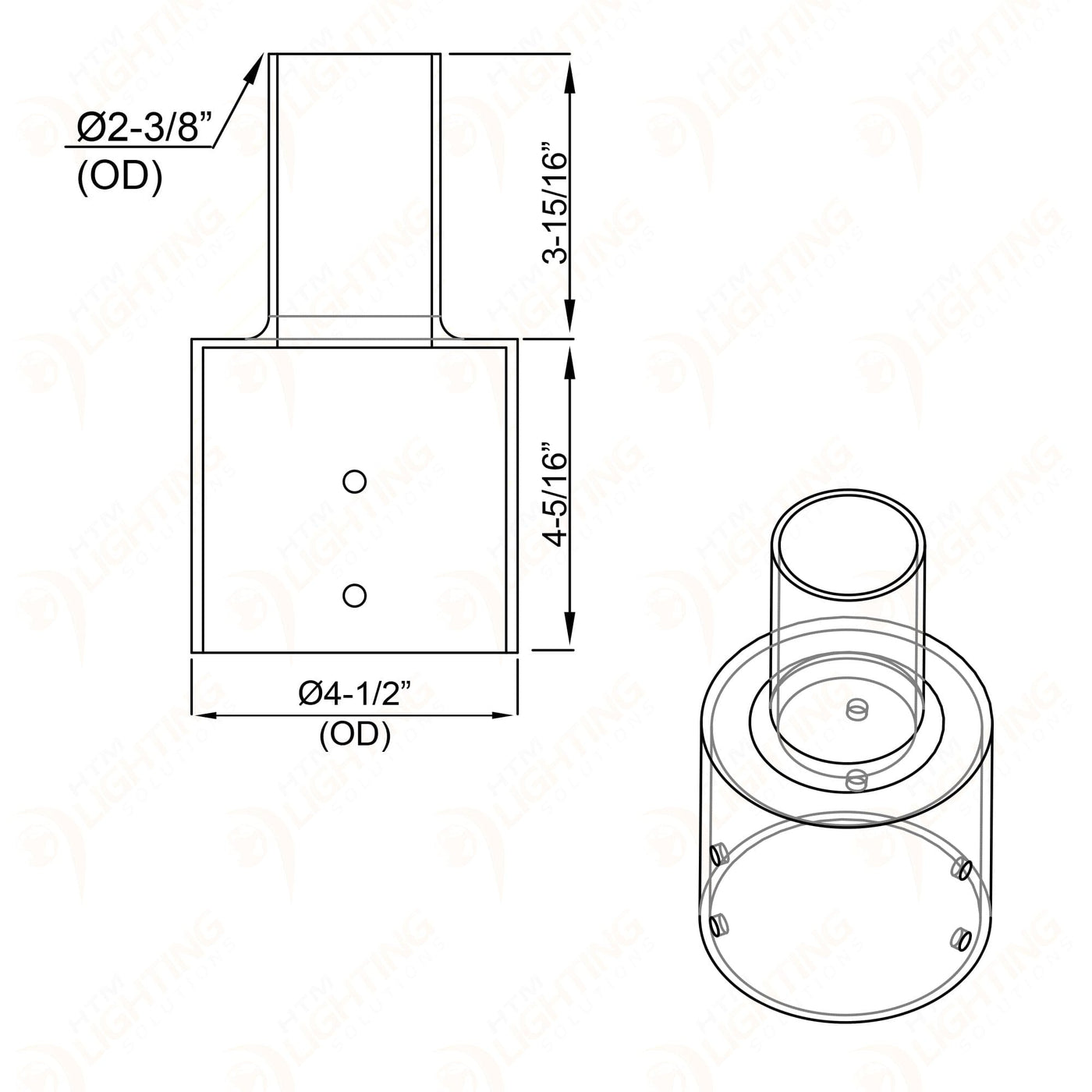

This Pole Top Slip Fitter Tenon Bracket has a 4-1/2in Outer Diameter and total Height of 8-1/4in. The Tenon measures 2-3/8in with a Height of 3-15/16in.
Type | Pole Mounting Accessories | ||
Adapter Type | Vertical Tenon | ||
Extension Quantity | 1 | ||
Mounting Surface | 4in. Round Pole |
Finish | Bronze |
Material | Steel |
Required Pole Size | 4in. |
Certification(s) |
|
Downloads
Box Qty | 1 |
Box Dimensions (in.) | 11in. x 9in. x 7in. |
Box Weight (lbs) | 5 Lbs |
Carton Qty | 10 |
Carton Dimensions (in.) | 30in. x 12in. x 10in. |
Cartin Weight (lbs) | 45.50 lbs |
